Continental shallow cumulus cloud detection using GOES-16 satellite and ground-based stereo cameras

Submitter

Zhang, Yunyan — Lawrence Livermore National Laboratory

Area of Research

Cloud Processes

Journal Reference

Tian J, Y Zhang, S Klein, L Wang, R Öktem, and D Romps. 2021. "Summertime Continental Shallow Cumulus Cloud Detection Using GOES-16 Satellite and Ground-Based Stereo Cameras at the DOE ARM Southern Great Plains Site." Remote Sensing, 13(12), 10.3390/rs13122309.

Science

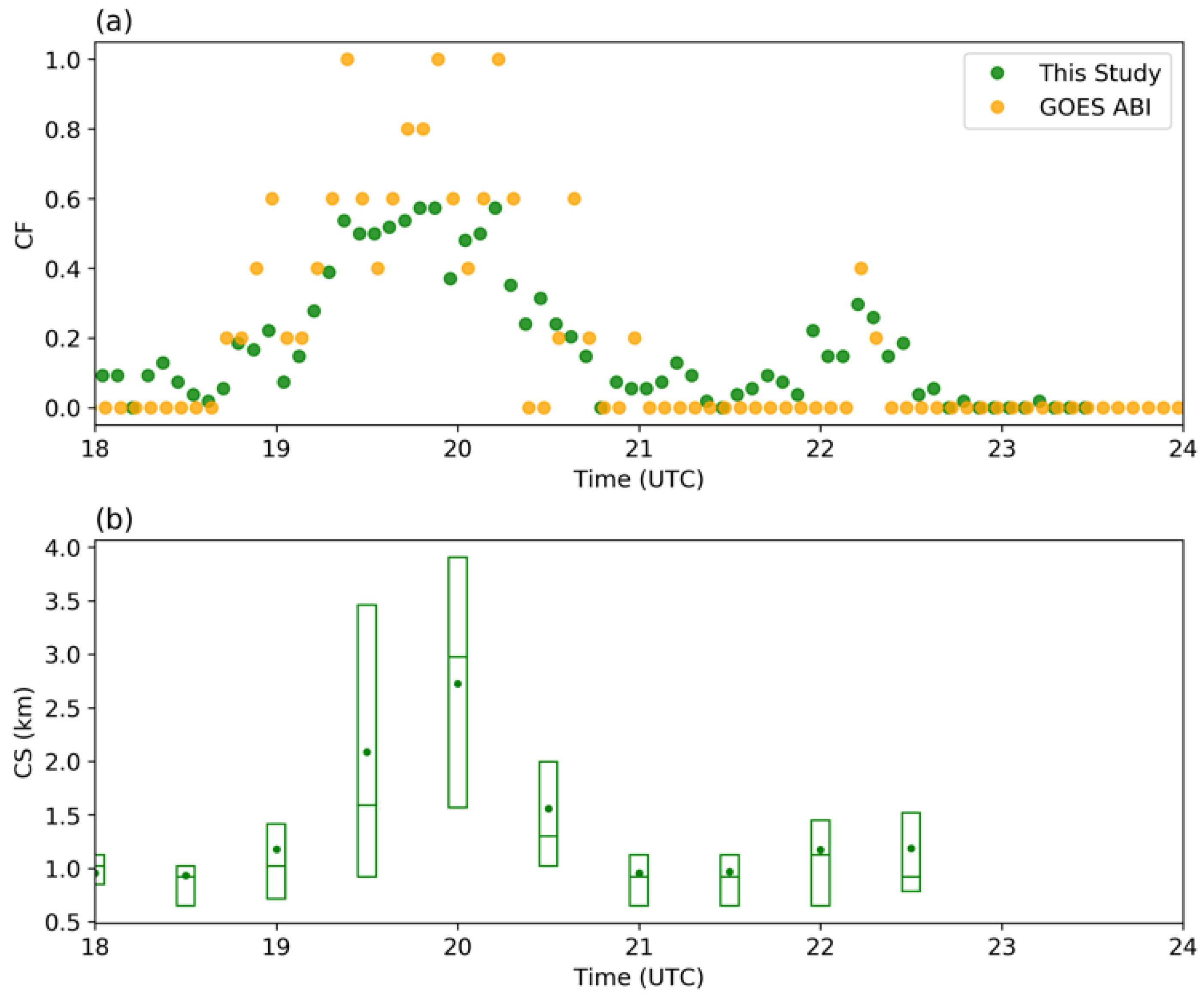

Figure 2. (a) Time evolutions of cloud fraction (CF) from the operational GOES ABI cloud mask (ACM, orange) and the estimation from this study using a constant (0.045, green) ∆R threshold on 11 July 2018 within the GOES simulator mask. (b) Time evolutions of cloud sizes (CS) using the new method. The horizontal line within the box indicates the median and the dot represents the mean. The boundaries of the box represent the 25th and 75th percentiles. From journal.

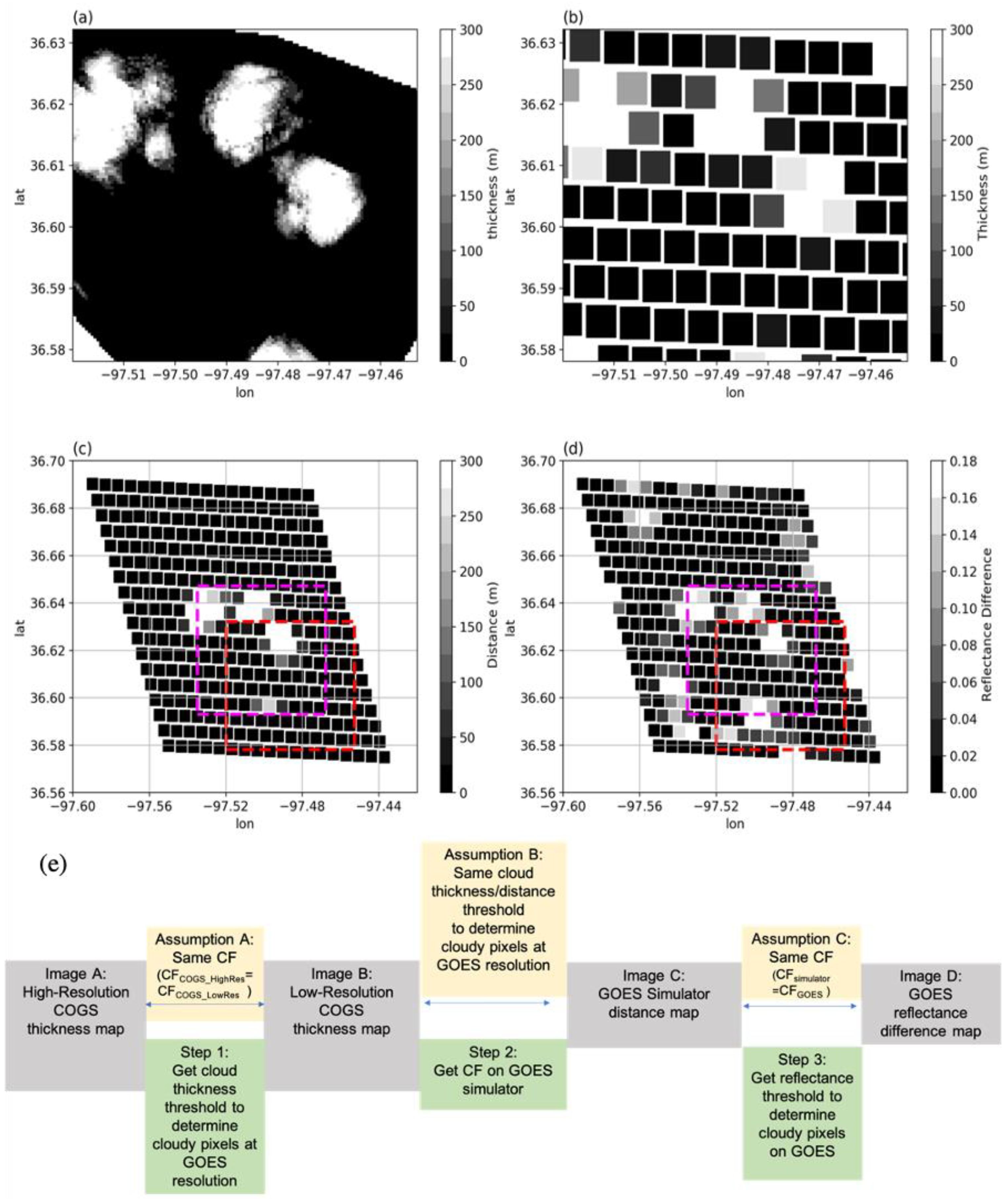

Figure 1. (a) Cloud thickness from SGP stereo cameras (the COGS data) on 20:33:40 UTC 11 July 2018. (b) Re-gridded COGS data from (a) to the same resolution of GOES satellite. (c) The mean distance through clouds observed by COGS along the path from GOES-16 satellite to the GOES surface pixel. (d) Reflectance difference from GOES data, which is the difference between GOES reflectance and clear-sky surface reflectance at the 0.64 µm “red” band. The red box is the actual COGS domain, and the magenta box is a domain of the same size, 0.015◦ north and west of the COGS domain. (e) A flowchart to summarize the assumptions, major steps, and data sets used to estimate ∆R, a reflectance threshold to identify a cloudy pixel in the satellite data. A cloudy pixel on satellite image is defined when the GOES reflectance exceeds the clear-sky surface reflectance by a certain value, e.g., ∆R. From journal.

To advance our understanding of the formation of continental shallow cumulus clouds (ShCu) and their coupling with the underlying surface, continuous ShCu observations are greatly needed, especially those that can resolve the daytime variation in cloud life cycles and cloud sizes over vast areas with heterogenous land types. However, such data are scarce due to the limited resolution and/or spatial coverage of instruments. Recently, we developed a new ShCu detection method by taking advantage of two state-of-the-art instruments: (1) the ground-based stereo cameras with accurate ShCu cloud boundary detection at the DOE ARM SGP site, and (2) the Advanced Baseline Imager (ABI) onboard the Geostationary Operational Environmental Satellite (GOES) with greatly improved spatial and temporal resolutions.

Impact

Detection of the low-level, kilometer-scale, and short-lived ShCu during daytime is a missing feature in the current GOES cloud mask data product. This study makes a first attempt to directly identify ShCu using GOES-16 reflectance data and the newly developed method is validated by the ground-based ARM SGP stereo camera data. This new method bridges the observational gap in detecting the daytime evolution of ShCu over a large area around the SGP region and has great potential to be applied to other regions with prevailing ShCu populations.

Summary

Summertime continental shallow cumulus clouds (ShCu) are detected using GOES-16 reflectance data, with cross-validation by observations from ground-based stereo cameras at the ARM SGP site. A ShCu cloudy pixel is identified when the GOES reflectance exceeds the clear-sky surface reflectance by a reflectance detection threshold of ShCu, ΔR. We first construct diurnally varying clear-sky surface reflectance maps and then estimate the ∆R. A GOES simulator is designed, projecting the clouds reconstructed by stereo cameras towards the surface along the satellite’s slanted viewing direction. The dynamic ShCu detection threshold ΔR is determined by making the GOES cloud fraction (CF) equal to the CF from the GOES simulator. Although there are temporal variabilities in ΔR, cloud fractions and cloud size distributions can be well reproduced using a constant ΔR value of 0.045 when compared with the stereo camera data. The new data set of ShCu based on this method can be used to facilitate further studies on ShCu development and transition to deep convective clouds over heterogenous land surface.
