vdis: Video Disdrometer

A disdrometer measures the drop size distribution and velocity of falling hydrometeors.

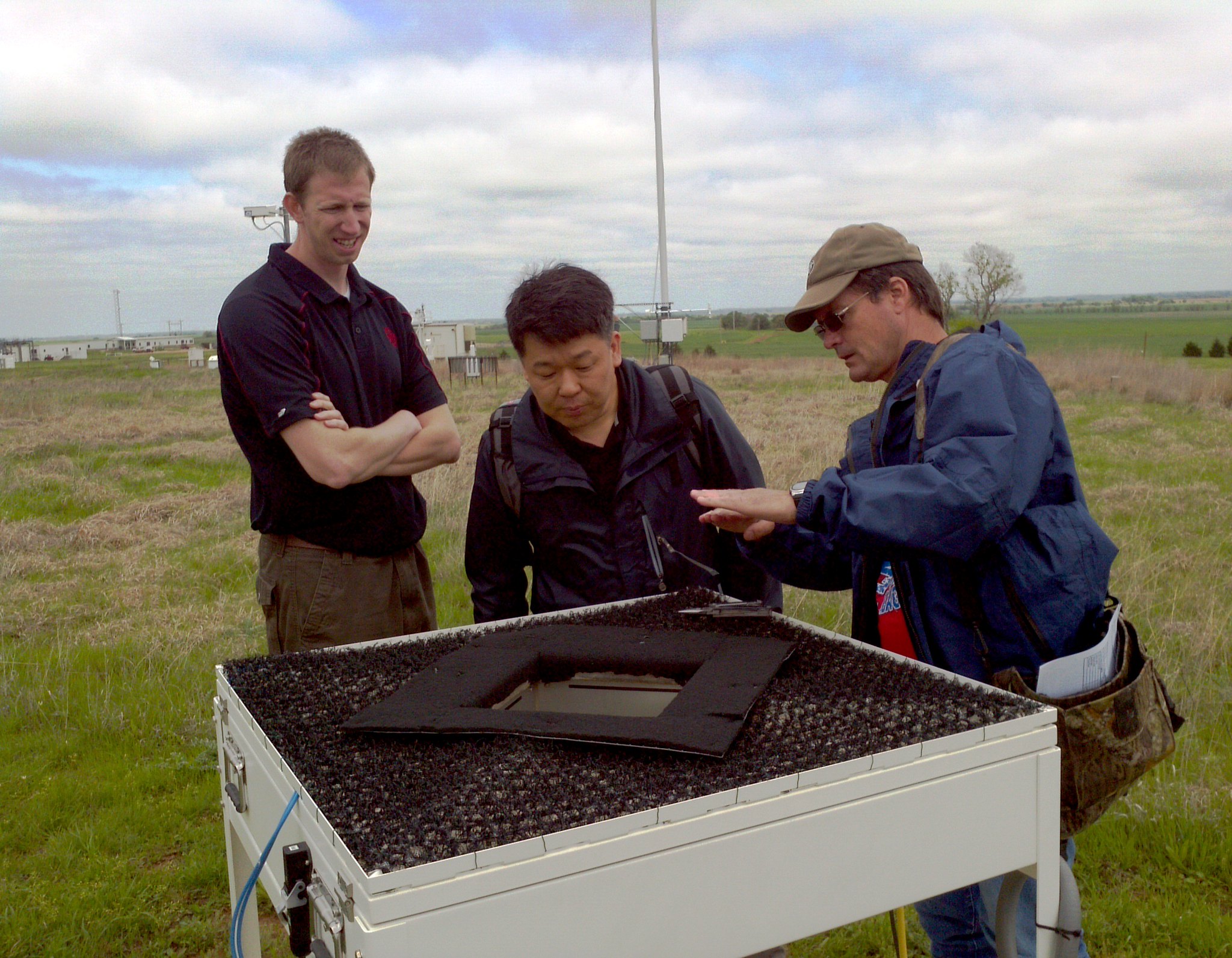

The 2-dimensional video-disdrometer (VDIS) comprises video cameras capable of observing individual hydrometeors from views perpendicular to each other. Two CCD line scan cameras are directed towards the measurement area. Objects passing through the measurement area—which is determined by the cross-section of the two optical paths as seen from above—obstruct the light and are detected as shadows by the cameras.

Each camera contains a small embedded computer responsible for handling the data-capture process, analysis of the data, and their conversion and compression into a format suitable for further processing. Subsequently the data are transferred to the computer used for instrument control and final analysis.

In order to identify individual precipitation particles by matching their views as seen by each of the cameras, it is necessary to synchronize the shutter and control both cameras with a synchronous line trigger signal.

To reconstruct observables like falling velocity, oblateness, etc. from the datastreams of the two cameras, the two optical paths are displaced vertically by about 6mm, typically. Measuring this distance and adjusting the background illumination are the two major calibration and maintenance tasks necessary for successful operation of the device.

Measurements

Locations

  • Fixed
  • AMF1
  • AMF2
  • AMF3

Active Instrument Locations

Facility Name Instrument Start Date
Lamont, OK (Extended and Co-located with C1) 1999-12-31
Graciosa Island, Azores, Portugal 2014-10-31
Central Facility, Lamont, OK 2011-02-28
